Product Infomation

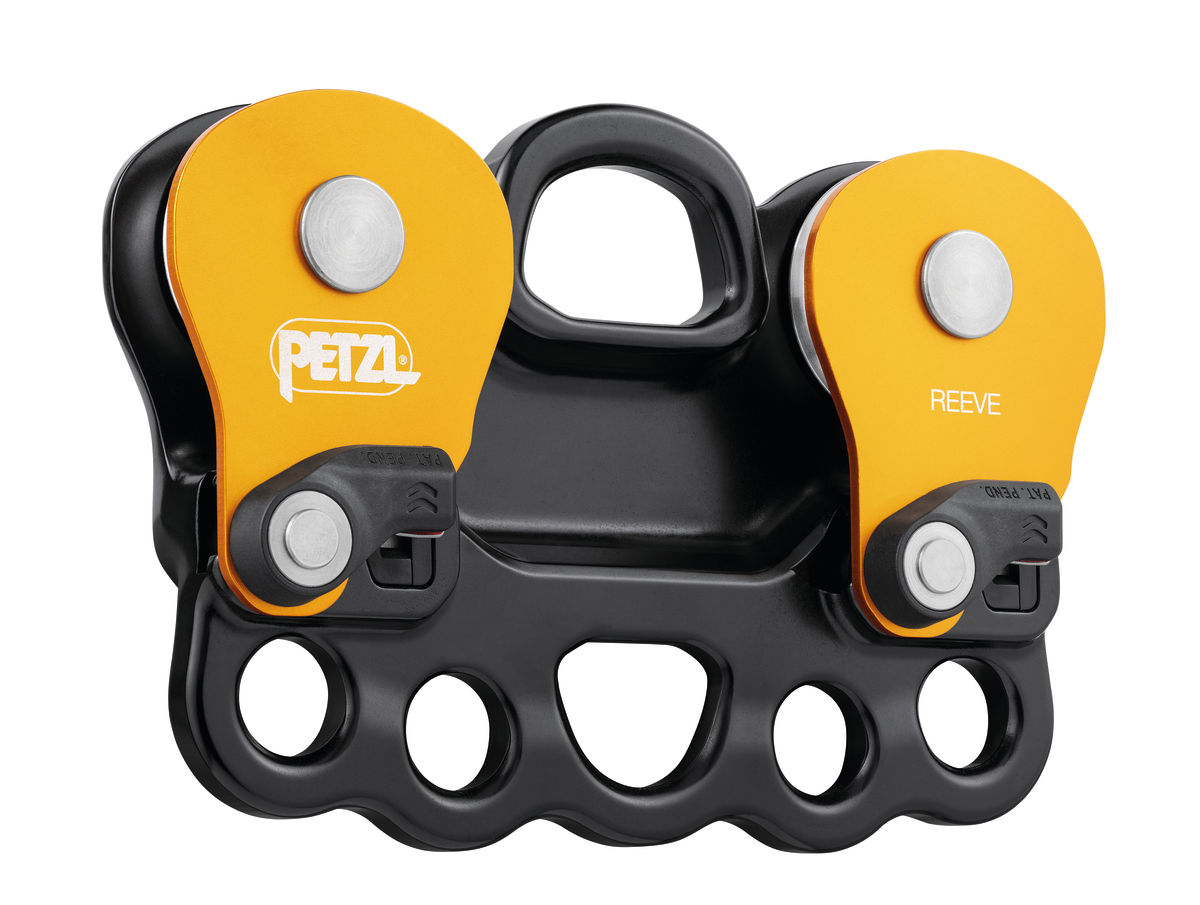

An integrated solution designed to simplify setting up rescue systems on tensioned highlines: the REEVE pulley limits the number of connectors and the height of the system, thanks to its compact design.

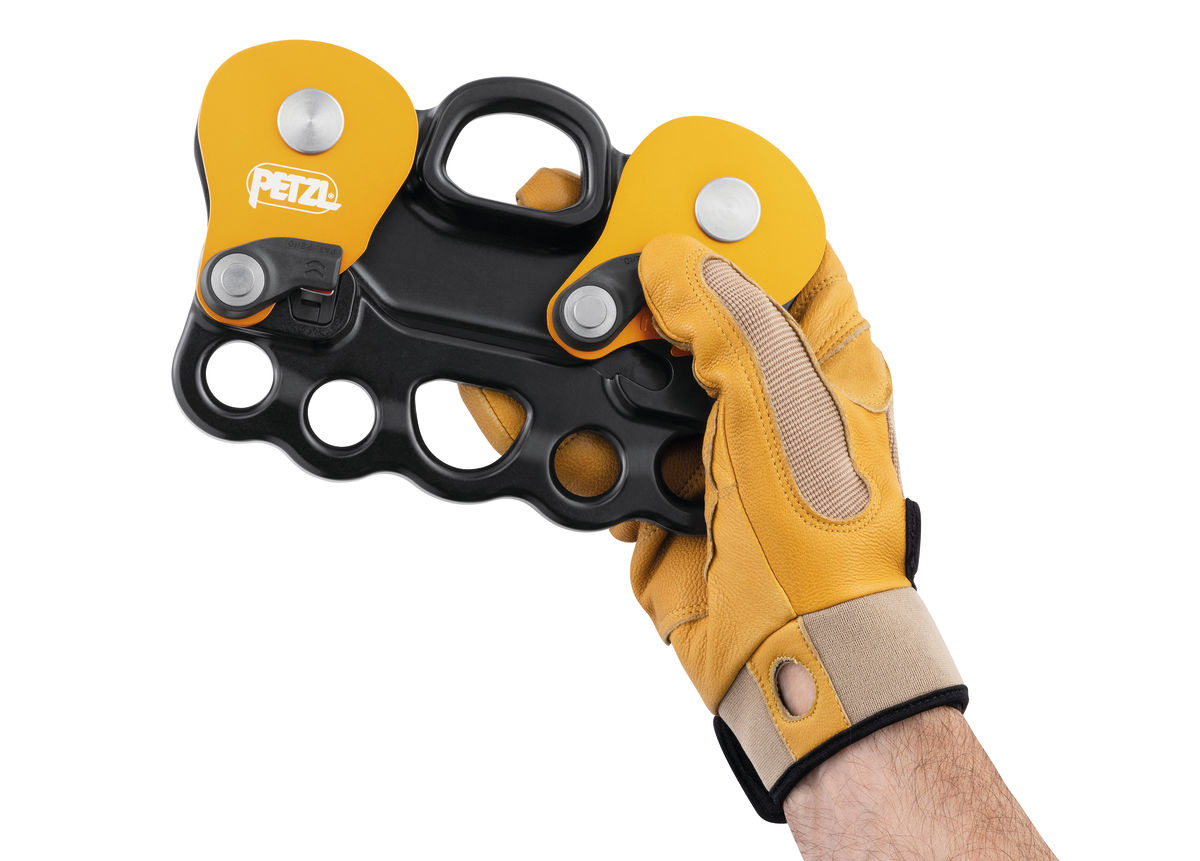

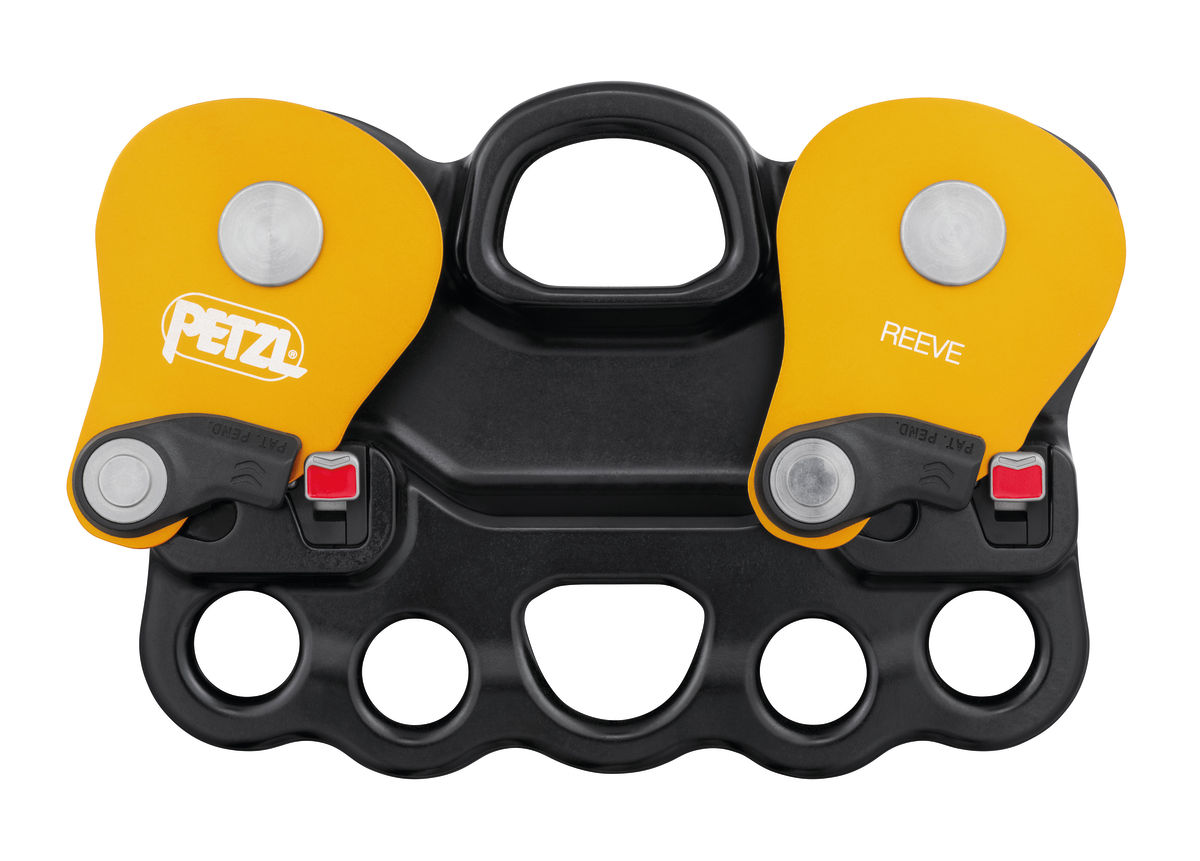

Operations and efficiency are optimized:- Triple-action opening of moving side plates, possible even with gloves- Red indicators provide a visual warning when the side plates are not correctly locked

Two large-diameter sheaves mounted on sealed ball bearings for excellent efficiency- Possible to rig the system before installing it on the main line

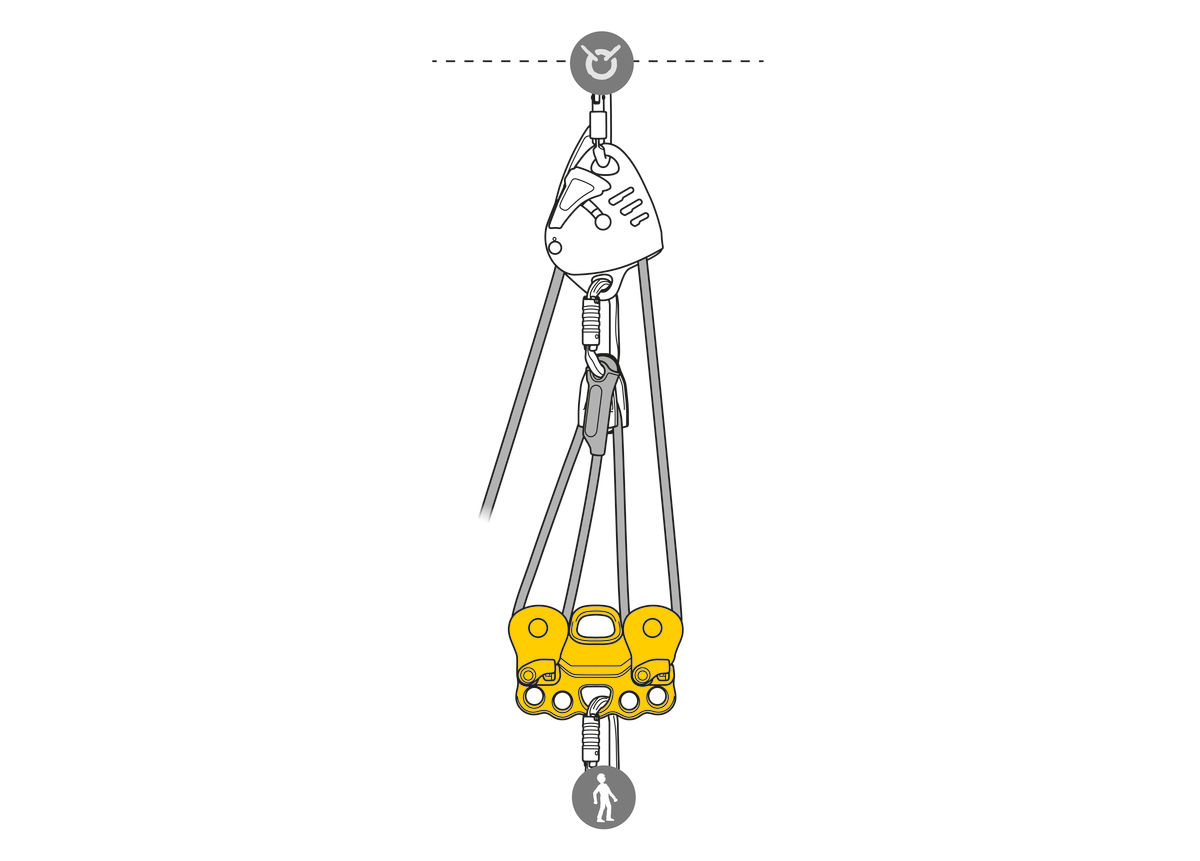

Multiple configurations and connections are possible:- System can be made redundant by placing two REEVE pulleys side by side (if distance between ropes permits), or by connecting a pulley to the upper connection hole for ropes at a further distance- Pulley can be used in a haul system- Hole design allows ropes or slings to be threaded for direct connection- 19 mm holes allow locking sleeves of most carabiners to pass through- The odd number of attachment holes enables the system to be centered and balanced- Up to three people can be connected at the same time
